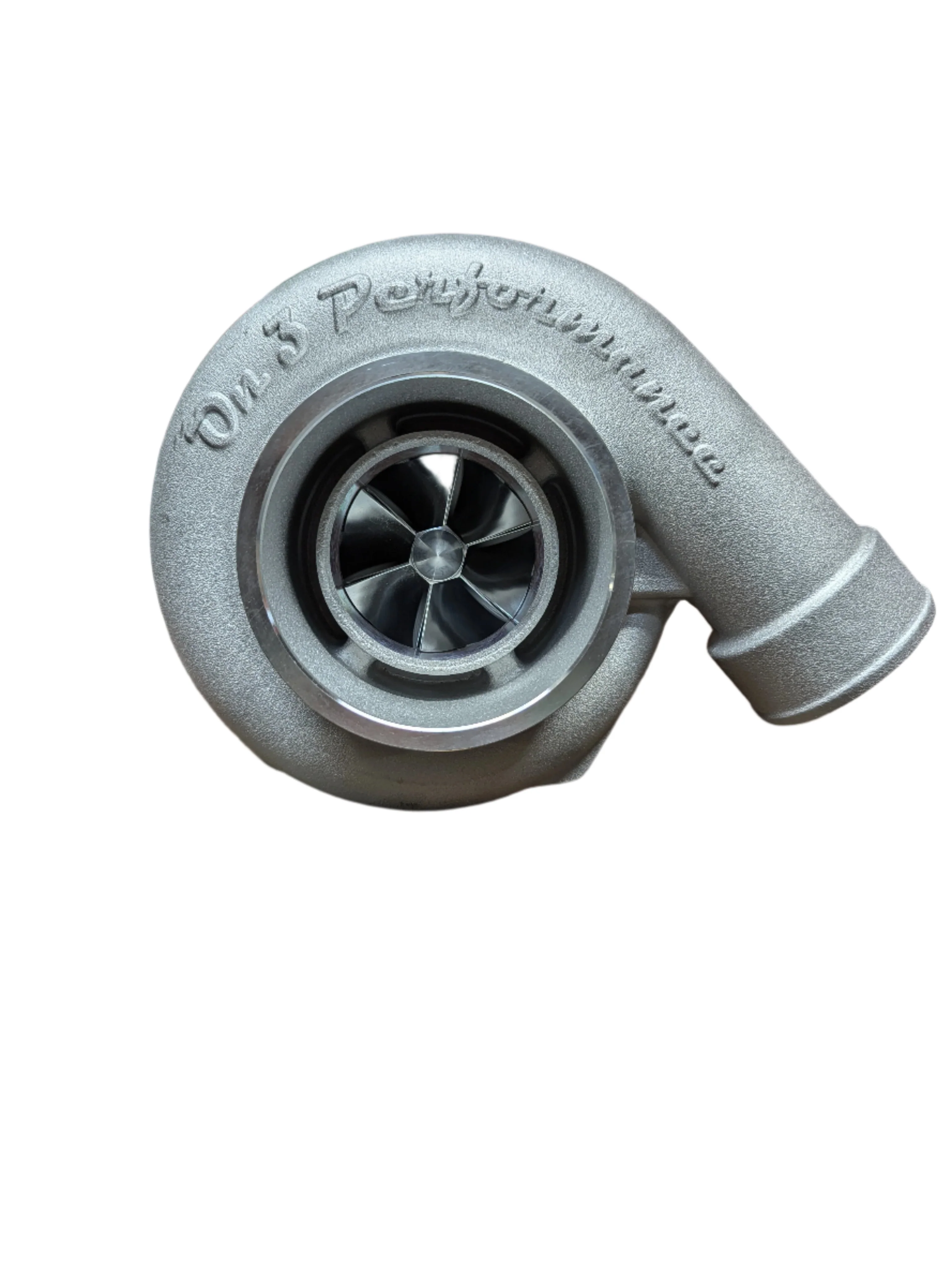

6161 Dual Ball Bearing 61mm Turbocharger GT3582R

On 3 Performance 61mm GT35 Series Turbocharger

T3 Series

614-439-0057

        On 3 Performance is currently stocking and shipping daily the newest addition to our turbo product line.  This turbo will be capable of supporting 650HP while a majority of our customers running these are in the 400-500 range on 4-cylinder applications.  Our primary application here, we run them on our Twin Turbo Mustang kits and make a very wide spectrum of power from 450-1000hp.  They are very quick into boost, very reliable when properly maintained and will make great power.

1. Select your compressor cover, you have 2 options to go with. We have the 4” inlet Anti-surge cover with the 2.5” outlet. Then your other option is the On 3 Compact Cover which is a 3” inlet and 2” outlet.
2. Select your exhaust housing and you have a few different options. You can go with the cast traditional .63ar housing with the 3” 4 bolt outlet design. Or you have the new v-band inlet and 3” v-band outlet design in a .82ar, or 1.06ar.



Compressor Side:

Inducer- 61mm, Exducer- 82mm



 Exhaust Side:

 Inducer- 68mm, Exducer- 62mm

Do you have a hurt GT3582 from Garrett?  Look no further and this is a drop in replacement for you.  Verify your unit is the same spec from the wheel info above and this can save you $100's instead of have to purchase a new CHRA directly.



Recommend Turbo Feed and Drain: To ensure the longevity of your turbocharger, we normally run our restricted feed fitting specific for this turbo and a 5/8" return.  This is very important and without this properly sized, you can cause damage to the product. Shipping: Email prior to buying if you are outside so we can run a shipping quote.  When processing your order, YOU MUST HAVE MATCHING BILLING AND SHIPPING TO THE CREDIT CARD!!!  If you do not, the order will fail and will not be processed

Ohio Residents: All Ohio residents are subject to 7.50% sales tax
